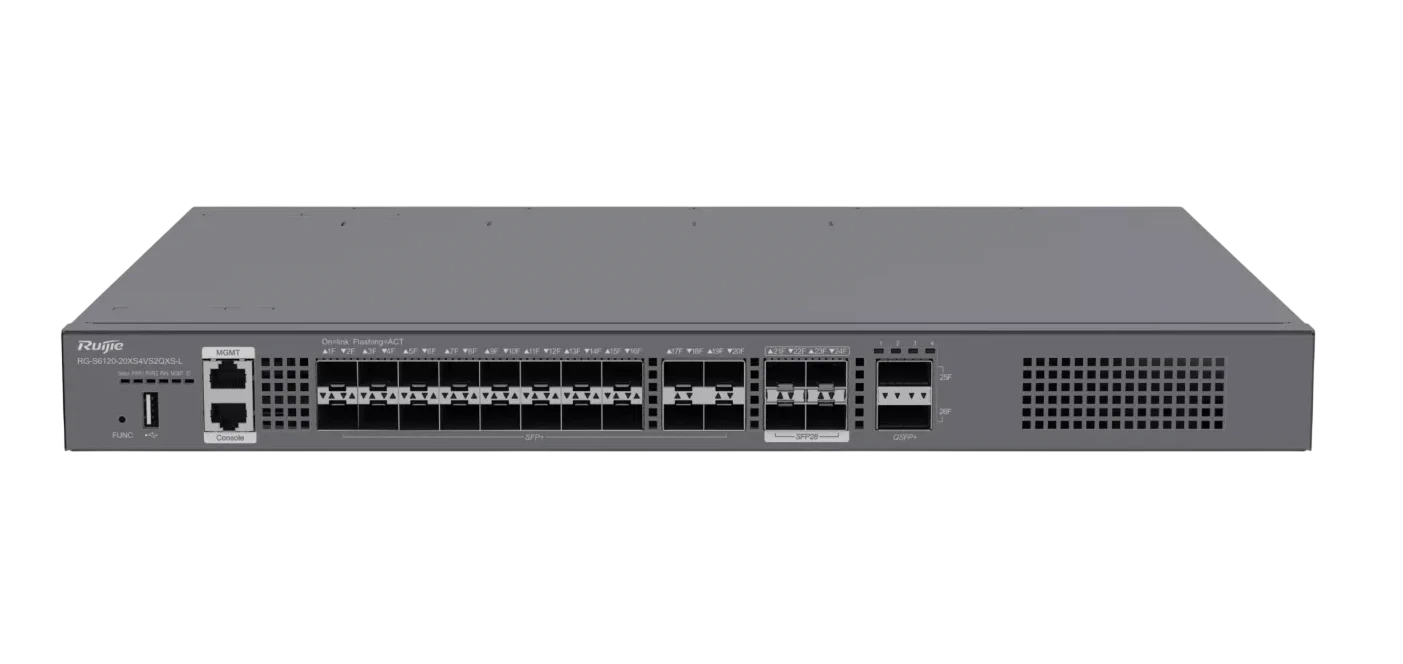

Ruijie RG-S6120-20XS4VS2QXS
Ruijie RG-S6120-20XS4VS2QXS | 20× 1G/2.5G/10G SFP+ | 4× 10G/25G SFP28 | 2× 40G QSFP+ | 2.56Tbps Switching | 570Mpps/1260Mpps | L2/L3 Managed | BGP/OSPF/IS-IS/RIP | VSU | 1+1 Redundant PSU | 1RU Rack-Mount
SKURUIJIEE-RG-S6120-20XS4VS2QXS
Starting from
$3,800/Unit
USDExcl. VATBase configuration included · Excl. VAT
Final price depends on configuration and quantity.
Lead time 2 weeks — Estimated from order confirmation and subject to supplier availability.
- Genuine Enterprise Hardware100% original and authentic
- Cambodia Local SupportFast response & after-sales
- 1 Year WarrantyParts & labor coverage
- Fast QuotationWithin 1 business day
- Professional InstallationOn-site deployment service
Service implementation request
OptionalSelect the services you need. Our engineers will review the scope and provide a tailored quotation.
Selected services
No implementation services selected.
Price breakdown
- Base price
- $3,800
Estimated total
$3,800
Excl. VAT
Implementation services are scoped and priced by our engineers on your quotation. Request a different configuration and our engineers will price it exactly.
- Warranty
- 1 Year
- Type
- Layer 3 Core / Aggregation Switch
- 10G Ports
- 20 × 1G/2.5G/10G SFP+
- 25G Ports
- 4 × 10G/25G SFP28
- 40G Uplink
- 2 × 40G QSFP+
- Switching Capacity
- 2.56Tbps / 25.6Tbps
- Forwarding Rate
- 570Mpps / 1,260Mpps
- VSU
- Up to 2 switches

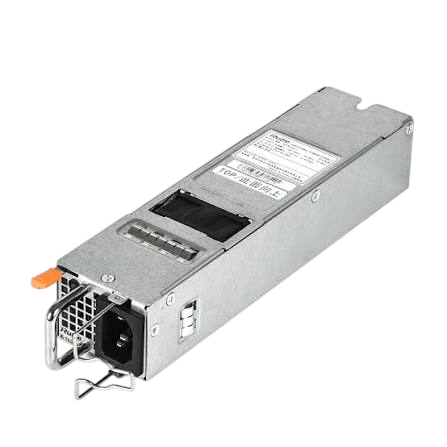

- Power
- 2 × Modular PSU slots, 1+1 redundancy
- Fan
- 2 × Hot-swappable modular fans
- Management
- MGMT, Console, USB
- Layer 3
- OSPF, BGP, IS-IS, RIP, IPv4/IPv6
- Rack
- 1U
- Power Consumption
- <85W
- Dimensions
- 440 × 330 × 43.6 mm
- PoE
- No
Type: Layer 3 Core / Aggregation Switch 10G Ports: 20 × 1G/2.5G/10G SFP+ 25G Ports: 4 × 10G/25G SFP28 40G Uplink: 2 × 40G QSFP+ Switching Capacity: 2.56Tbps / 25.6Tbps Forwarding Rate: 570Mpps / 1,260Mpps VSU: Up to 2 switches Power: 2 × Modular PSU slots, 1+1 redundancy Fan: 2 × Hot-swappable modular fans Management: MGMT, Console, USB Layer 3: OSPF, BGP, IS-IS, RIP, IPv4/IPv6 Rack: 1U Power Consumption: <85W Dimensions: 440 × 330 × 43.6 mm PoE: No
Need a different configuration, quantity pricing or a lead-time estimate? Add this product to your quote list and tell us what you need — our engineers respond within one business day.
No documents published yet
Datasheets, quick-spec sheets and manuals for this product are not hosted on the site yet. We can email the manufacturer documentation on request.
Ask our teamSupport articles are not online yet
Our engineers handle support directly. Reach us at (+855) 93 555 691 or by email, Mon – Sat, 08:00 – 17:30.
Ask our teamIdeal For
Typical deployments for this class of hardware.
- Enterprise NetworkingGeneral-purpose business networking
Need help choosing?
Our engineers can size the right system for your workload and confirm lead times before you commit.
Contact Our ExpertsRecommended for your setup
