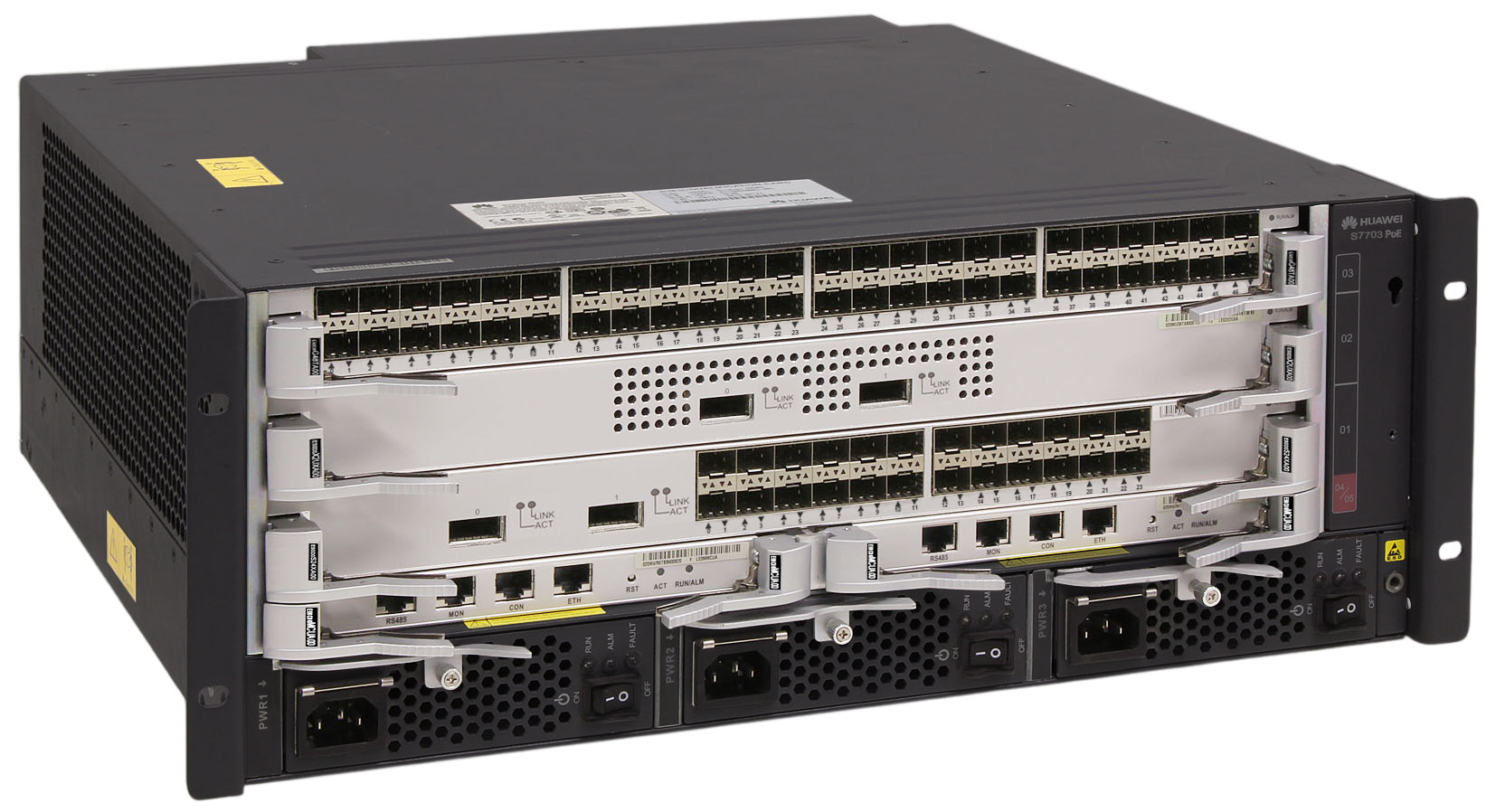

Huawei S7703Huawei S7703

Model

Huawei S7703

Product Series

Huawei S7700 Series Smart Routing Switches

Device Type

Modular Layer 3 Core / Aggregation Switch

Chassis

4U

Main Control Unit (MPU) Slots

2

Service / LPU Slots

3

Switching Capacity

1.92 Tbps

Forwarding Performance

1,440 Mpps

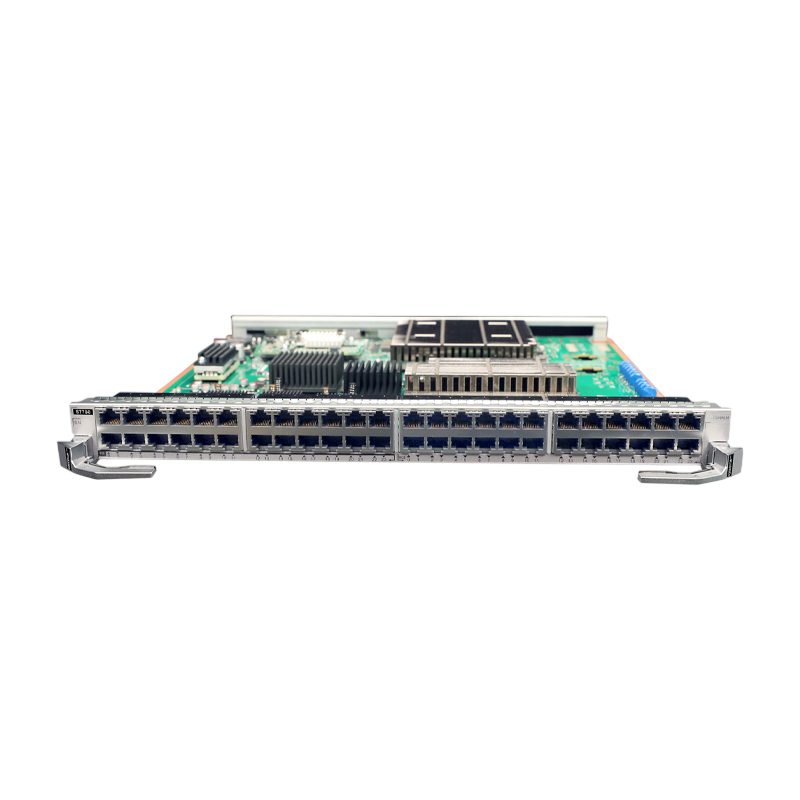

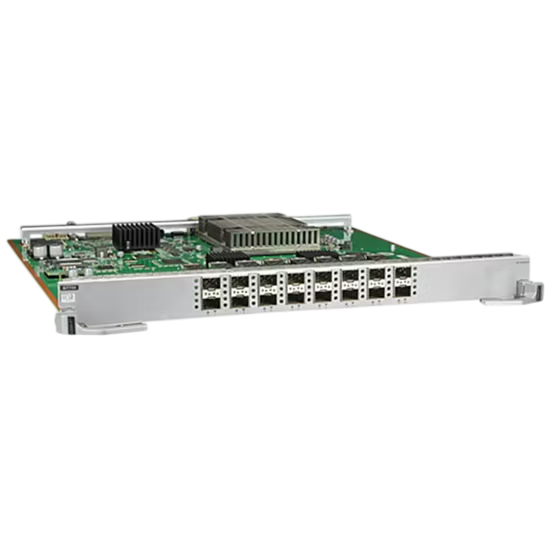

Port Expansion

Supports modular interface cards for GE, 10GE, 40GE and 100GE connectivity

Maximum Density

Up to 144 × GE, 144 × 10GE, 36 × 40GE, or 18 × 100GE depending on software version and interface cards.

VLAN

Up to 4K VLANs

IPv4 Routing

Static Route, RIP, OSPF, IS-IS, BGP4

IPv6 Routing

Static Route, RIPng, OSPFv3, IS-ISv6, BGP4+

Advanced Features

MPLS, VXLAN, QoS, NetStream, IPSec, Load Balancing

Wireless Management

Native AC function; supports AP access control, AP profiles, radio management and WLAN services

Maximum AP Management

Up to 4,000 APs depending on configuration/software.

Redundancy

Redundant MPUs, power modules, CMUs and fan trays

Power

Supports AC/DC power modules depending on configuration

AC Input

90–290V AC

Dimensions (W × D × H)

442 × 517.4 × 175 mm

Form Factor

4U Rack-Mount

Typical Applications

Enterprise Core Network, Campus Core, Data Center Aggregation, MAN, and Large Enterprise Networks.
