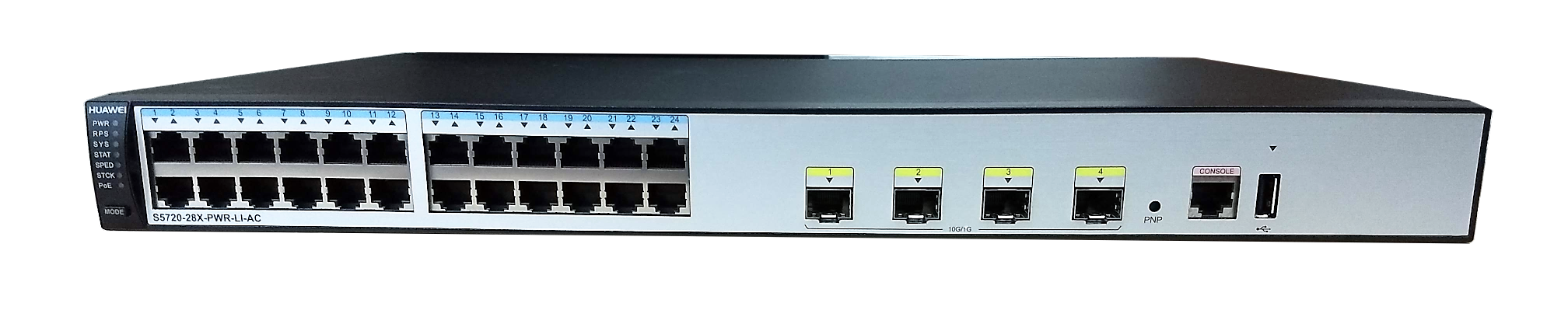

Huawei S5720-28X-PWR-LI-ACHuawei S5720-28X-PWR-LI-AC

Warranty

1 Year

Model

Huawei S5720-28X-PWR-LI-AC

Product Series

Huawei S5720 Series

Device Type

Managed Gigabit PoE+ Ethernet Switch

Downlink Ports

24 × 10/100/1000BASE-T PoE+ ports

Uplink Ports

4 × 10Gb SFP+ ports

PoE Standard

IEEE 802.3af / 802.3at

PoE Power Budget

369.6W

Switching Capacity

336 Gbps

Forwarding Performance

108 Mpps (up to 126 Mpps with applicable license)

MAC Address Table

Up to 16,000 entries

VLAN

Up to 4,094 VLANs

IP Routing

Static Route, RIP/RIPng, OSPF/OSPFv3

Management

CLI, Web, SNMPv1/v2c/v3, Telnet, SSH, HTTPS

Stacking

iStack supported

Console Port

RJ45 Console

USB

1 × USB 2.0

Memory

512MB RAM

Flash

512MB physical flash

Power Supply

Built-in AC

Input Voltage

100–240V AC, 50/60Hz

Model: Huawei S5720-28X-PWR-LI-AC Product Series: Huawei S5720 Series Device Type: Managed Gigabit PoE+ Ethernet Switch Downlink Ports: 24 × 10/100/1000BASE-T PoE+ ports Uplink Ports: 4 × 10Gb SFP+ ports PoE Standard: IEEE 802.3af / 802.3at PoE Power Budget: 369.6W Switching Capacity: 336 Gbps Forwarding Performance: 108 Mpps (up to 126 Mpps with applicable license) MAC Address Table: Up to 16,000 entries VLAN: Up to 4,094 VLANs IP Routing: Static Route, RIP/RIPng, OSPF/OSPFv3 Management: CLI, Web, SNMPv1/v2c/v3, Telnet, SSH, HTTPS Stacking: iStack supported Console Port: RJ45 Console USB: 1 × USB 2.0 Memory: 512MB RAM Flash: 512MB physical flash Power Supply: Built-in AC Input Voltage: 100–240V AC, 50/60Hz
