Huawei AirEngine 9700S-S-8APHuawei AirEngine 9700S-S-8AP

Warranty

1 Year

Model

Huawei AirEngine 9700S-S-8AP

Device Type

Wireless Access Controller (WAC/AC)

AP License

8 APs

Maximum AP Capacity

Up to 128 APs with additional licenses

Forwarding Capacity

10 Gbps

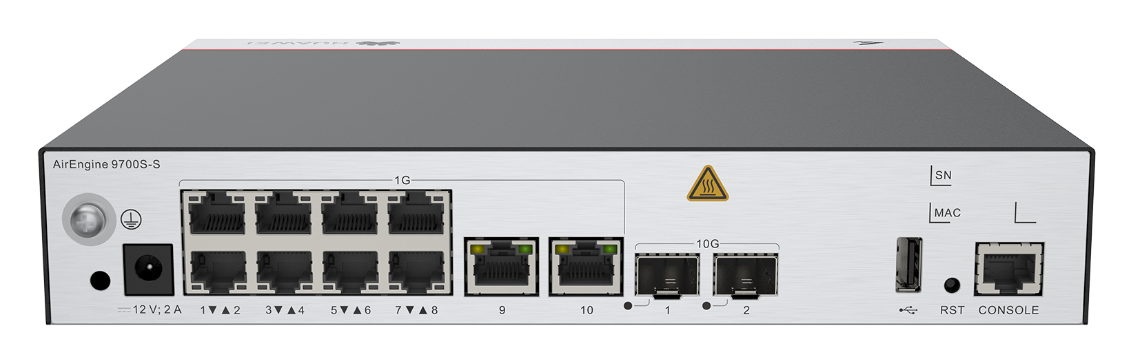

GE Ethernet Ports

10 × 10/100/1000BASE-T

10GE Uplink Ports

2 × 10GE SFP+

Console

1 × RJ45 Console

USB

1 × USB

MAC Address Table

8,192

VLAN

Up to 4,096

IPv4 Routing Table

4,096

IPv6 Routing Table

2,048

ARP Table

4,096

Multicast Table

2,048

DHCP Address Pools

Up to 16 pools

Local Accounts

Up to 1,024

ACL

Up to 4,096

Deployment

Direct, bypass/side-by-side, and bridge/Mesh modes

Forwarding Modes

Local forwarding and centralized/tunnel forwarding

Management

Web GUI and CLI

Power Supply

AC/DC power adapter

Maximum Power Consumption

21W

Dimensions (H × W × D)

43.6 × 210 × 250 mm

Model: Huawei AirEngine 9700S-S-8AP Device Type: Wireless Access Controller (WAC/AC) AP License: 8 APs Maximum AP Capacity: Up to 128 APs with additional licenses Forwarding Capacity: 10 Gbps GE Ethernet Ports: 10 × 10/100/1000BASE-T 10GE Uplink Ports: 2 × 10GE SFP+ Console: 1 × RJ45 Console USB: 1 × USB MAC Address Table: 8,192 VLAN: Up to 4,096 IPv4 Routing Table: 4,096 IPv6 Routing Table: 2,048 ARP Table: 4,096 Multicast Table: 2,048 DHCP Address Pools: Up to 16 pools Local Accounts: Up to 1,024 ACL: Up to 4,096 Deployment: Direct, bypass/side-by-side, and bridge/Mesh modes Forwarding Modes: Local forwarding and centralized/tunnel forwarding Management: Web GUI and CLI Power Supply: AC/DC power adapter Maximum Power Consumption: 21W Dimensions (H × W × D): 43.6 × 210 × 250 mm

Need a different configuration, quantity pricing or a lead-time estimate? Add this product to your quote list and tell us what you need — our engineers respond within one business day.
