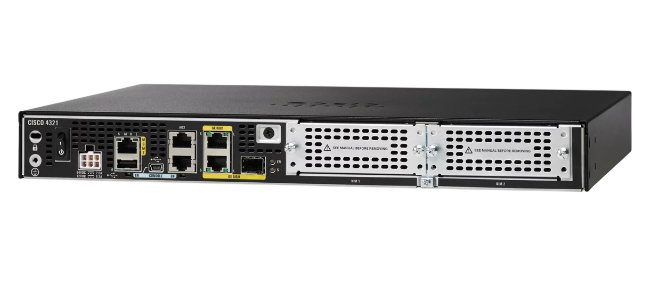

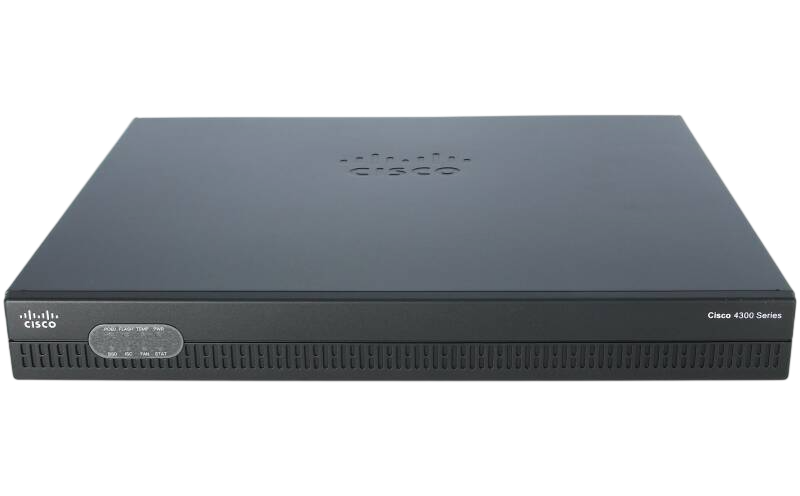

Cisco Router ISR4321-SEC/K9Cisco Router ISR4321-SEC/K9

Warranty

1 Year

Model

Cisco ISR4321-SEC/K9

Series

Cisco 4000 Series Integrated Services Router

Device Type

Enterprise Branch Router

Security Bundle

SEC — Advanced Security License

Integrated WAN

1 × GE / SFP 1 GE

Management Port

1 × GE Out-of-Band Management

NIM Slots

2 × Network Interface Module slots

ISC Slot

1 × PVDM4

Default DRAM

4GB DDR3 ECC

Maximum DRAM

8GB

Default Flash

4GB

Maximum Flash

8GB

USB

1 × USB Type-A

VPN

IPsec VPN, DMVPN, FlexVPN, EZVPN

Security

Zone-Based Firewall, IPS capabilities

Routing

IPv4/IPv6, Static Routing, OSPF, EIGRP, BGP, IS-IS, RIP

NAT

VRF-aware NAT

QoS

Advanced QoS features

Base Performance

50 Mbps

Performance Upgrade

Up to 100 Mbps with FL-4320-PERF-K9

PoE

Up to 120W without boost / 260W with PoE boost

Power

External AC / PoE

Redundant PSU

Not supported

Form Factor

1U Rack-Mount / Desktop

Model: Cisco ISR4321-SEC/K9 Series: Cisco 4000 Series Integrated Services Router Device Type: Enterprise Branch Router Security Bundle: SEC — Advanced Security License Integrated WAN: 1 × GE / SFP 1 GE Management Port: 1 × GE Out-of-Band Management NIM Slots: 2 × Network Interface Module slots ISC Slot: 1 × PVDM4 Default DRAM: 4GB DDR3 ECC Maximum DRAM: 8GB Default Flash: 4GB Maximum Flash: 8GB USB: 1 × USB Type-A VPN: IPsec VPN, DMVPN, FlexVPN, EZVPN Security: Zone-Based Firewall, IPS capabilities Routing: IPv4/IPv6, Static Routing, OSPF, EIGRP, BGP, IS-IS, RIP NAT: VRF-aware NAT QoS: Advanced QoS features Base Performance: 50 Mbps Performance Upgrade: Up to 100 Mbps with FL-4320-PERF-K9 PoE: Up to 120W without boost / 260W with PoE boost Power: External AC / PoE Redundant PSU: Not supported Form Factor: 1U Rack-Mount / Desktop

Need a different configuration, quantity pricing or a lead-time estimate? Add this product to your quote list and tell us what you need — our engineers respond within one business day.
